Btu Bladder Turn-up Building Machine/tubeless Building Machine
Bladder Capsule Turn Up Building Machine
Applicant
This machine is suitable for motorcycle tire, car tire, truck car
tire building.
Structure feature
Its forming drum adopts metal AB structure while tire building
adopts finger turn down, bladder turn up.
This press can realize tire loading, shaping, vulcanizing and
unloading automatically. Tire can be cooled automatically with post
cure inflator. It can adopt two-half mould and segmented mould.
Structure characteristics:
The machine consists of frame, mould opening/closing device, mould
adjusting device, center mechanism, curing chamber, loading device,
tire unloading device, hydraulic system, electrical system,
pipeline system and post cure inflator etc.
Electrical Control system: It adopts PLC as control center, which
has touch screen for display unit. The touch screen can display
curing state, we can realize the man-machine conversation, such as
technology choosing and parameters modification etc.
Our Machine Advantage:
Hydraulic pressure drives the mould opening/closing and center
mechanism.
Multi-cylinder provide pressure to make even force and small
deformation on platens
The safety lock can make sure the safety for maintenance
The mould height can be adjusted automatically
The hydraulic system adopts Yuken, Rexroth, Parke world famous
brand which can work safely, reliably and without any leakage.
Main parameter
| Type | BTU-0814 | BTU-1518 | BTU-1912 |
| Bead diameter(mm) | 8”-14” | 15”-18” | 19”-21” |
| Chuck width(mm) | 180-450 | 130-450 | 130-450 |
| Spindle center height(mm) | 900 | 900 | 900 |
| Spindle speed(r/min) | 35/70/200 | 35/70/200 | 35/70/200 |
| Overall size(mm) | 5780*1500*2030 | 5925*1600*2030 | 5925*1600*2030 |
| Weight(kg) | 5200 | 6200 | 6200 |
Our service
1. Engineering: workshop design, technology design.
2. procurement: raw material, machinery.
3. construction: workshop
4. manufacturing: machinery
5. aftersales service: training.

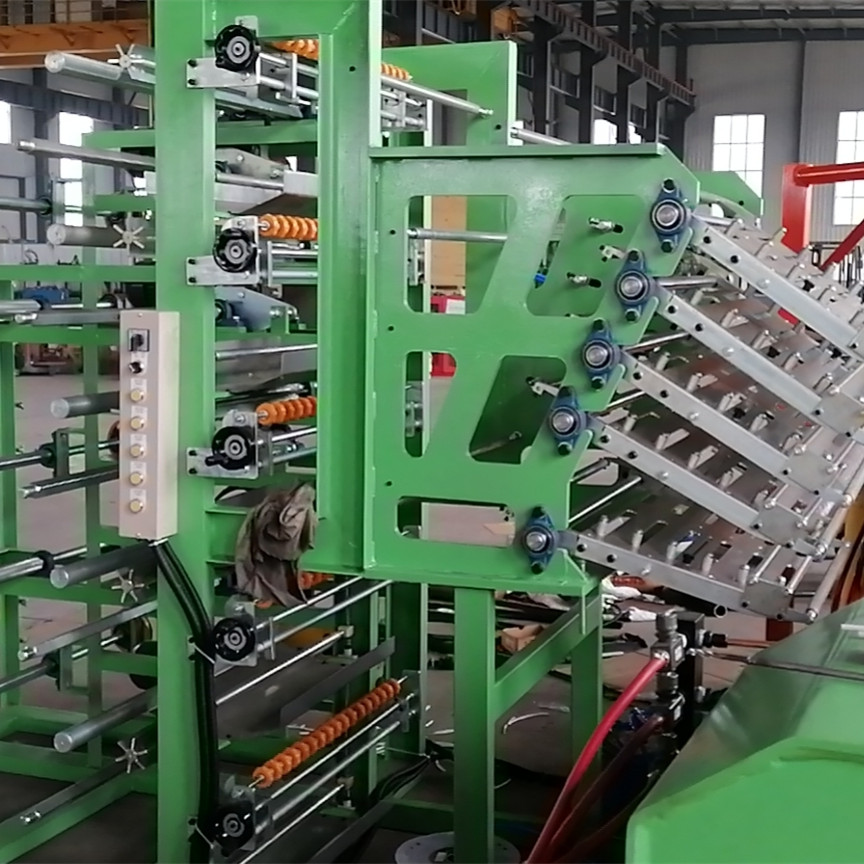

Machine detail
