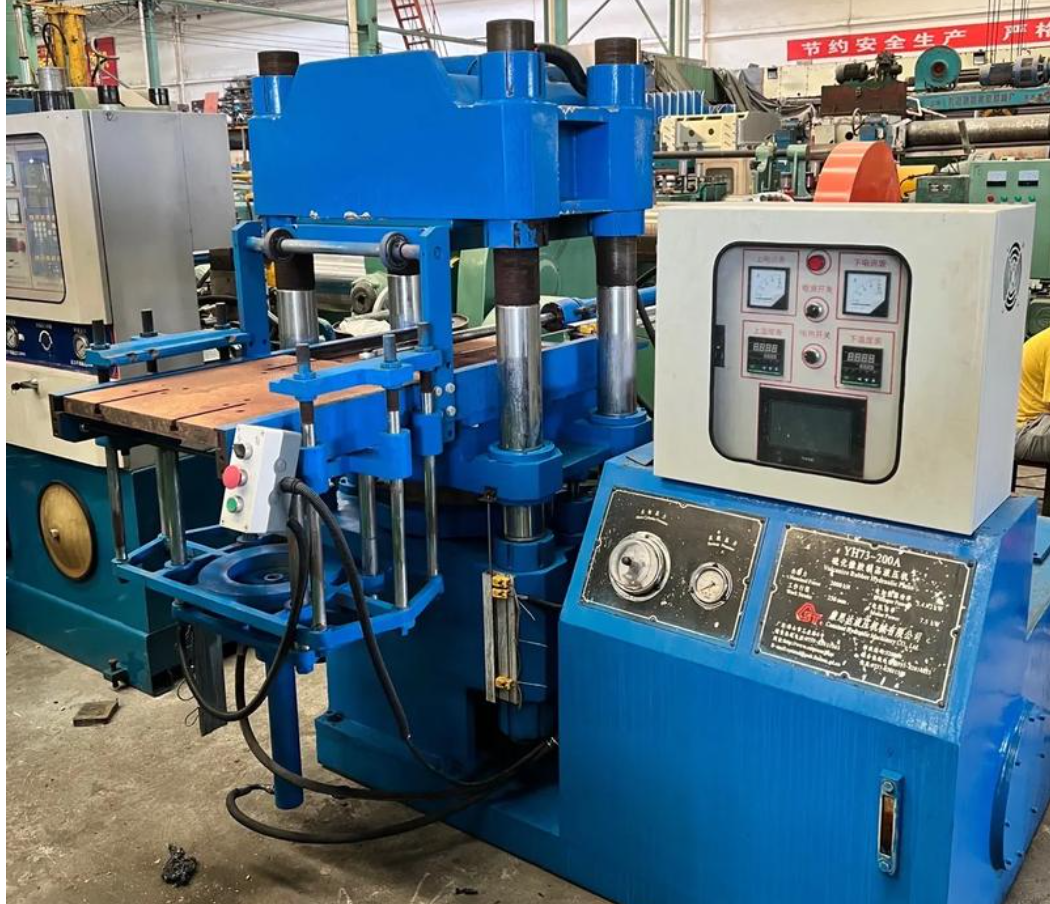

Small Size Silicone Mobile Phone Case Vulcanizing Press Machine Is
Suitable For Small-Scale Production Plants
Product Description:
Silicone mobile phone case vulcanizing machine is a kind of
equipment for the production of silicone mobile phone case.
Its main working principle is to vulcanize silica gel raw materials
through high temperature and high pressure. In the vulcanization
process, the molecular structure of the silica gel will be
cross-linked, so that the silica gel from a fluid state into an
elastic solid state, and finally shaped into the shape of the phone
case.
Such equipment usually has precise temperature and pressure control
systems. Temperature control is critical because different silicone
materials require different temperatures for vulcanization, usually
in the temperature range of 100℃ -200 ℃. The pressure system can
ensure that the silicone is evenly filled in the mold to ensure the
quality and appearance of the phone case. At the same time, the
vulcanizing machine will also be equipped with the corresponding
mold, the shape of the mold determines the appearance and size of
the phone case.
Features:
First, molding machine
Molded silica gel is molded by a vacuum vulcanizer, while extruded
silica gel is extruded by an extruder.
Second, curing agent
Moulded silica gel can be added by adding odorless vulcanizing
agent or double pentaculcanizing agent after the strip cutting, the
strip/sheet silica gel raw material into the machine after high
temperature vulcanization molding; The extruded silica gel is
directly thrown into the rubber bucket after adding double
tetrasulfide or platinum vulcanizing agent and extrusion
vulcanization molding. Molded silicone and extruded silicone rubber
can reach food grade, molded silicone rubber to reach food grade
must add odorless vulcanizing agent, and extruded silicone rubber
to reach food grade must add platinum vulcanizing agent.
Three, molding speed
The molding time of molded silicone takes 60s-180s, and the molding
time of extruded silicone only takes a few seconds.advantage
1. It is not limited by shape and can be customized according to
guests' requirements.
2. High precision, product structure shape neat and beautiful.
3. Bright color, you can adjust the color at will.
Technical Parameters:
| Model: | XLB-400*400 |
| KN | 30 / 50 / 65 / 100 or higher |
| Heating Plate Dimension: | 300*300 MM or 400*400 mm or bigger |
| Total Power: | 2 KW |
| Heating Power: | 5 KW |
| Power: | 1000W |
| Voltage: | AC 380 V |
| Weight: | 800 KGS |
| Dimension: | 1000*1600*1300 MM |
| Packing size | 1100*1700*1400 MM |
| Packing Weight | 1400 KGS |
This table shows the technical parameters of the Rubber Heat Press
Machine, also known as Rubber Tire Vulcanizing Press or Rubber Belt
Vulcanizing Machine.
Applications:
Molded silica gel is mainly suitable for the production of silicone
products with a certain size shape length limit, molded silica gel
can be designed into products with a certain regular size by
opening the mold, such as the silicone phone case, silicone sealing
ring, baby pacifier and other products are produced by molded
silica gel.
Extruded silica gel is mainly suitable for the production of
tubular/strip silicone products without length limit, extruded
silica gel can be preformed by the extruder head and then
vulcanized by the oven to produce silicone products without length
limit, such as the silicone water pipe often used in our lives,
silicone seals and other products are produced by extruded silica
gel.
Therefore, molded silica gel is suitable for silicone products with
limited shape size, and extruded silica gel is suitable for
silicone products with a certain shape and no length limit.
.
Customization:
Our Rubber Vulcanizing Press Machine, model XLB-1500×1500×2, is a
top-of-the-line product manufactured by Beishun in QINGDAO, CHINA.
It comes with CE and ISO certifications, ensuring its quality and
reliability. You can place an order for as low as 1 piece with a
price range of 5000USD-100000USD. The delivery time is 45 days, and
we offer flexible payment terms through T/T and L/C. Our supply
ability is 30 sets per year.
Our Rubber Vulcanizing Press Machine is highly customizable and can
cater to your specific needs. We offer product customization
services for rubber stopper Vulcanizing press, rubber tiles
Vulcanizing Press, and rubber tiles Vulcanizing Press. The control
system is equipped with a PLC for efficient operation. The
temperature range can be adjusted from 0-300℃, and the voltage can
be configured to 220V/380V/400V/440/. The cylinder stroke is 200mm,
making it suitable for a wide range of applications.
Packing and Shipping:
Product Packaging:
- 1 Rubber Vulcanizing Press Machine
- 1 User Manual
- 1 Set of Spare Parts
Shipping:
- Shipping Method: Standard Ground Shipping
- Estimated Delivery Time: 25 Business Days
- Shipping Cost: Free
- Shipping Restrictions: Only available for delivery within the
United States
